Volvo EWD

The VOLVO (EWD) ELECTRONIC WIRING DIAGRAMS 2013-D contains the Volvo official wiring diagrams on DVD.

VOLVO EWD-Electronic Wiring Diagram contains the electrical circuits for vehicles VOLVO current models from 2004 to 2013 year. In the given manual are included the complete electrocircuits, locations of the relay and fuses, pin assignments for all sockets, circuit of an locations of sockets, blocks and elements, descriptions and kind of all sockets.

Requirements:
- OS: Windows XP, Windows Vista, Windows 7, Windows 8
- CPU: Pentium / Athlon 1.8 GHz or higher
- RAM: 256 MB of system memory
- Hard Drive: 10 GB of available space
- DVD-ROM

Navigating
All text coloured blue is a link

1.The button in the left corner (START) takes you back to the start page.
2.The dropdown list contains a complete list of the included component designation, but has no other functionality, corresponds to the component list only.

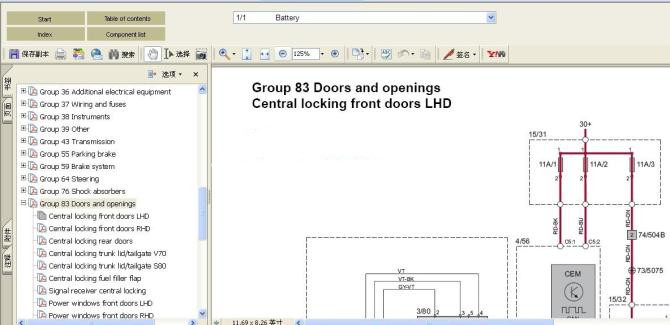

3.The bookmarks are a table of contents of the publication and take you directly to the page referred to.

Overview image of ground terminals
When clicking on a component number, the link takes you to the respective ground terminal table

Overview image of control modules
When clicking on a component number, the link takes you to the main diagram for the respective control system

Connectors

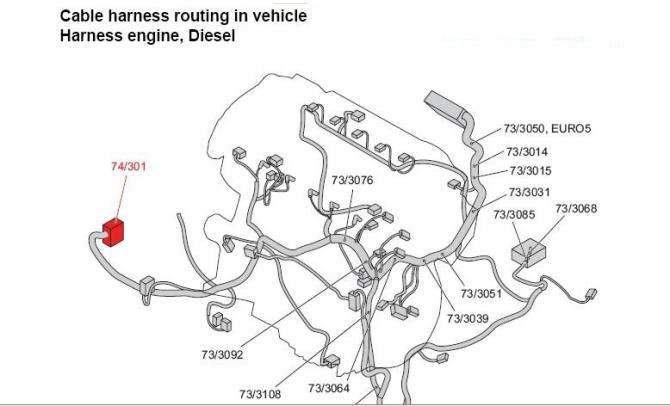

When clicking on a cable harness designation in the tables, the link takes you to the overview image for that cable harness. If the text is black, there is no image to link to.

Component images
When clicking on a component designation, the link takes you to the main diagram page for the component, alternatively, if there are several pages, to the initial diagram page.

List of components
When clicking on a component designation, the link takes you to the component image for that component.
When clicking on a component designation, the link takes you to the main diagram page for the component, alternatively, if there are several pages, to the initial diagram page.
