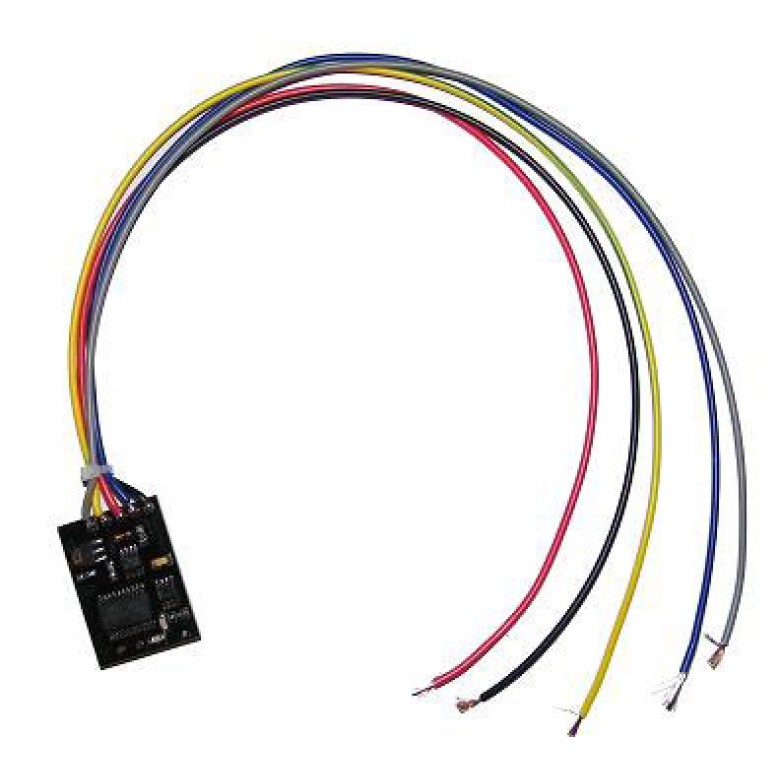

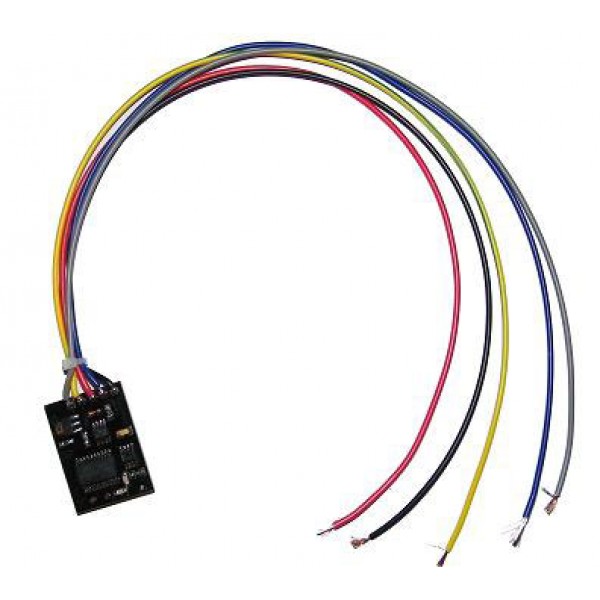

Yamaha bikes immobilizer emulator

The emulator of an immobilizer for motorcycles and scooters Yamaha.
Works with all motorcycles and scooters Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.

For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.

 Any problems,please feel free to contact us.
Email: obd2be@hotmail.com
MSN: obd2be@hotmail.com
SKYPE: greebid6

Colouring of wires and their appointment:
Black (2 pcs.)  GND
Red with a green strip  BATT (+12v)
Red with a white strip  IGN (+12v)
Blue  LED (+5v)
Yellow with a blue strip  K-line Immo-ECU

Package including:
1* maitain item
