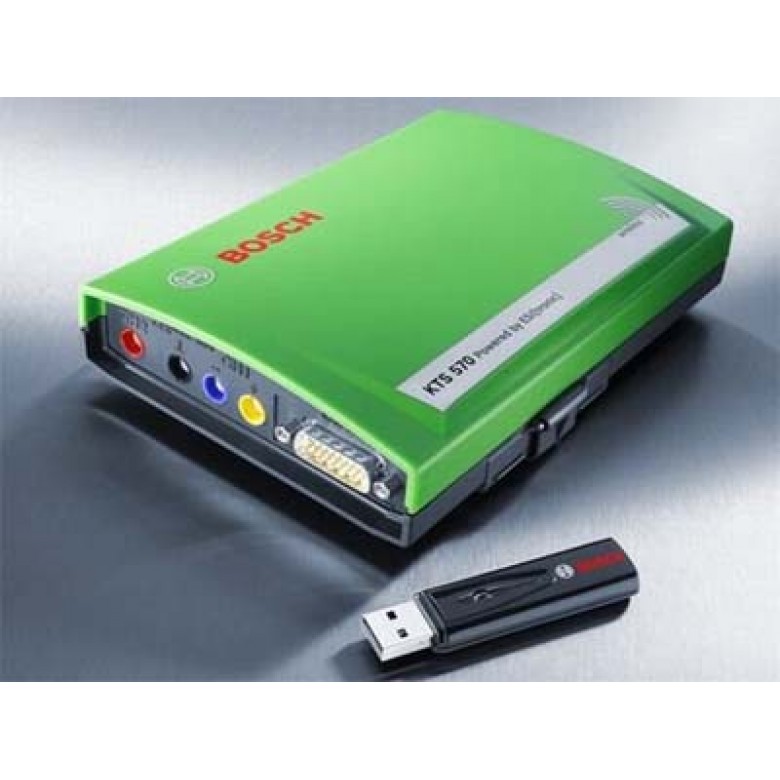

Bosch KTS 570
Make Your Tests Convenient and Safe with the Bosch KTS 570 Wireless
Expect control unit diagnostics of the highest grade from the top device of the KTS family. Whether you’re dealing with a diesel- or gasoline-powered vehicle – make your tests wireless and convenient with all the functions.
Revision History
Bosch KTS 570 - Bluetooth
Bosch KTS 540 - Bluetooth
Bosch KTS 530
Bosch KTS 520
Bosch KTS 570 Function
Convenient and mobile with wireless "Bluetooth transfer”
Bluetooth Standard Class 1 with powerful and stable radio transmittance up to 100 meters
Bluetooth USB Adapter by Bosch included in the delivery for convenient and easy initial installation
Control and activation of the installation via the integrated software DDC, Diagnostics Device Configuration
Automatic KTS module search
Radio link test with integrated signal transmitter
Test program for checking the radio link
Optical and acoustical status ID / control of the radio link
Simulation mode individually adjustable via DDC
Universal application for motor and commercial vehicles via universal OBD plug for 14V and 28V electrical systems for vehicles
New: Diagnosis oscilloscope
Improved multi-meter and oscilloscope measuring technology
Improved signal analysis due to significantly increased sampling rate, increased image replay rate and horizontal deflection with improved resolution
Higher input resistance simplifies troubleshooting
Easy connection of the KTS Series to the vehicle
Up-to-date and ready for the future with change adapters
Clear communication via multiplexer and future cable adapter recognition: K and L line, SAE and CAN can be switched to all possible terminals on the OBD plug
Intelligent adapter connection now allows safe multiplexer triggering and automatic control unit search function with SD Ident
New: Change adapter integrated in the device. By changing Car- or Systemtechnology it can easily be replaced
Easy mounting and removing via module fixture
The following operating system is supported: MS-Windows® XP
With a USB interface, the KTS 570 can be hooked up to all standard laptops / PCs
For fast and easy adaptation
Workshop-specific design of the housing and connecting cables
Replaceable change adapter integrated in the module
Module fixture included in delivery
Scope of delivery
Power unit (15V/1A)
Mains supply cable
OBD-exchange adapter, interchangeable
Adapter line OBD 1.5m
UNI4 adapter
Testing wire, twin (red, black) 3m
Testing wire, twin (blue, yellow) 3m
Ground cable, black
2x Test pick, red
Terminal post, black
Connecting line USB 3m
Bluetooth USB adapter
Case
Mounting bracket
Special accessories
Tire valve activator (1 687 200 663)
Printer PDR 371 (1 687 023 435)
USB connecting cable 1m (1 684 465 491)
USB connecting cable 2m (necessary in conjunction with trolley) (1 684 465 507)
Connecting line USB 5m (1 684 465 563)
USB Bluetooth extension 1m for Bluetooth PC Stick (1 684 465 564)
USB Bluetooth extension 3m for Bluetooth PC Stick (1 684 465 565)
FSA current clamp 30A (1 687 224 969)
FSA current clamp 1000A (1 687 224 968)
Adapter for FSA current clamp of FSA 450, (additionally required adapter 1 684 480 124) (1 684 463 522)
Measuring shunt 0 to 600 mA (1 684 503 103)
AC/DC current clamp 100/600 A with pin plug (1 687 224 864)
several adapter cables "Easy Connect" (new adapter concept)
several adapter cables from the existing adapter concept
