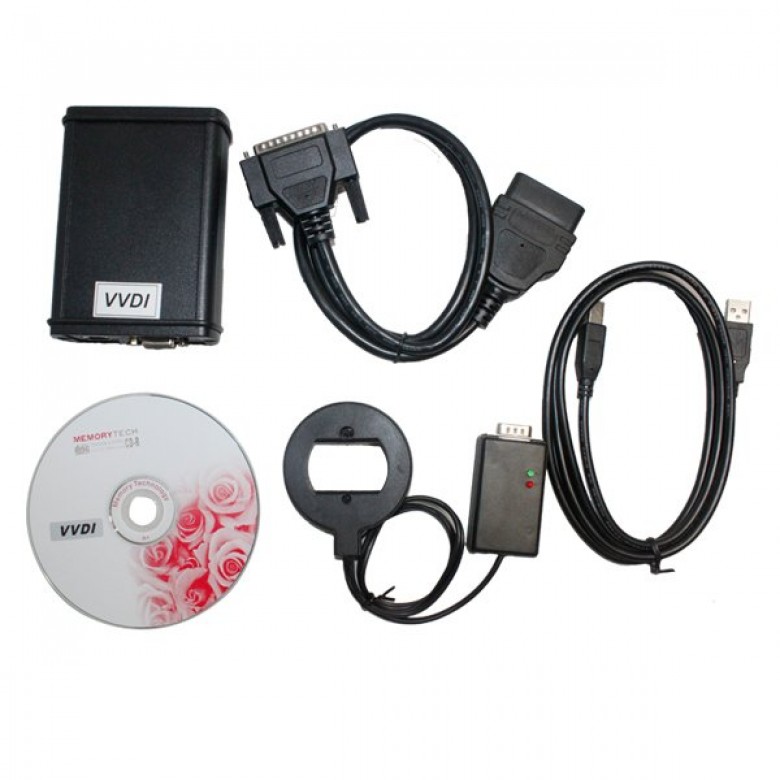

VAG Commander V8.6 VVDI

VAG Commander V8.6 VVDI VAG Vehicle Diagnostic Interface

Newest update for IMMOPLUS V11.2
Newest version: V11.2

VAG Vehicle Diagnostic Interface VVDI for the vehicles VW Audi is a Windows-Based diagnostic software. With the help of VAG Vehicle Diagnostic Interface VVDI you can perform operations with vehicles from the VAG group, which are in most cases unsupported from the producer diagnostic testers. The VAG Vehicle Diagnostic Interface VVDI for VAG provides you also full diagnostic capabilities for VAG-vehicles.

Support Car List:
1 AN002 - KM-CAN
1 AN003 - PIN-CAN
1 AN004 - IMMO panel
1 AN005 - IMMO panel EDC16
1 AN006 - KM/PIN K-Line
1 AN008 - Flash Counters
1 AN009 - Key learning
1 AN010 - Airbag EEPROM
1 AN011 - TV Activation
1 AN012A- EDC16 Odometer
1 AN012B- EDC16 EEP/PIN/IMMO-off
1 AN014 - EDC17 EEPROM
1 AN015 - Flash Memory ECU
1 AN016 - Dealer key learning
1 AN018 - Dealer key learning Q7
1 AN019 - Prepare Dealer Key Q7
1 AN021 - ME7 EEPROM by CAN
1 AN022 - CDC32xx Programmer
1 AN027 - Q7 2008

VVDI Function:
1) Extracting security access codes (PIN) by OBDII
2) Programming keys by OBDII. Preparation of dealer's keys.
3) Mileage recalibration by OBDII
4) Clearing crash data DTCs by OBDII
5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
6) Exchange speed limit of MMI-TV system

1. Standard diagnostic functions:
1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
2) For all electronic control units reading identification data
3) For all electronic control units read error (DTCs)
4) For all electronic control units clear error (DTCs)
5) Scan all units
6) Broadcast requests
7) Measured values
8) Adaptation

2. Special functions:
1) Instrument CAN
(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0
(2) You can read current odometer value
(3) You can change odometer value
(4) Added support for VDO Instrument Cluster 2006+
(5) Read/Program memory of instrument cluster immobilizer
(6) Reading security access code of the IMMOBILIZER
(7) Read/Write immobilizer related data
2) EZS - Kessy (Q7/A6/Allroad)
(1) With this function you can prepare dealer key/learn dealer key
(2) Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad)
3) Instrument K-Line
(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
(2) You can Read/Change odometer value
(3) Read PIN code
(4) Read/Write eeprom
(5) Read ROM/Flash from the Instrument cluster
4) Engine Control Unit
(1) Read EDC17/MED17 flash memory
(2) Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flashmemory via OBDII (K and CAN). Calculation of checksums while programming, ME7.1.1, MED9.x, ME7.5)
(3) Read/Write flash counters (EDC16)
(4) Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
(5) Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
(6) Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
(7) Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
(8) Odometer correction (EDC15, EDC16)
5) Kessy adaptation
This function can be used for adaptation of brand new kessy units to the car. This adaptation can be by CAN TP2.0, K-KWP2000 and also can be used with Porsche Cayenne.
6) TV activation ED1/ED2
(1) Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF
7) Key learning
With this function you can learn key/transponder to the vehicle
8) Dump tool
With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit
9) Airbag
With this special function you can Read/Write EEPROM memory of the airbag module
Clear the crash data of the airbag module
10) Custom Read/Write
Using this application you can read/program memory in some electronic control unit
11) PIN Convertor
12) Service interval
Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options
13) Remote control adaptation
Using this application, you can learn remote controls
14) Navigation
Using this application, you can enable/disable the “Eject” button of the “Navigation” system
15) Cruise control system
Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available

Function in addition:

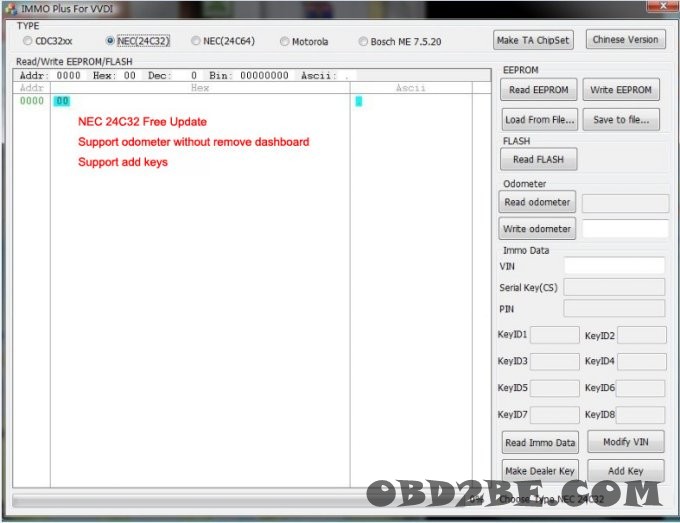

1.According to obd2, the latest VVDI supports nec 24c32 mileage change, dealer key generation, EPPROM data reading & writing, FLASH backup.
2.According to obd2, the latest VVDI supports GOLF6 MM7(9S12) mileage change, dealer key generation, EPPROM data reading & writing, FLASH backup.
3.Add the function of professional TA chip pre-program, it directly pre-programs 48 chip into TA2, TA3, TA4, TA5.

How to update VAG Vehicle Diagnostic Interface VVDI?

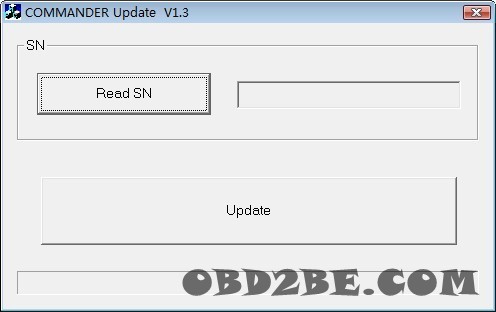

1. Please download this software: Commander update V1.3
2. Give us the serial number
3. We send you update file by email.

Note:
IMMO PLUS 8.5 software and VAG COMMANDER software is allowed to run with a same hardware, but our old VVDI users need to update the hardware firmware before running IMMO plus software with the VAG COMMANDER hardware.

Before update, you have to use COMMANDER UPDATE 1.3 software to read out serial number and send it to your supplier. After your supplier send you the updating data file, please also use COMMANDER UPDATE 1.3 software to open it, then update the hardware, you need only click the button “UPDATE”, then a dialog box appears, then you just open the data file.

V11.0 update:
1. Your interface must update to newest version then can use this newest version software.
2. Add AUDI/VW 5th generation IMMO generate dealer key and key learning function. Need works with "BDM programmer".Support car model:
A4L/Q5/A5/A6L(2012-)/A7/A8(2011-)/Touareg(2011-)
3. Support new POLO 4th generation IMMO, dashboard NEC24C32.
4. Fix some bugs.

V10.0 Update
1. Compared with normal operation of the 8.5 version, this update software can run without having to upgrade the firmware
2. Perfect four-generation anti-theft instrument failed login prompt, and customers can tell according to prompts to identify the problem
3. Add some of the imported models automatic identification
4.Update NEC +24 the C32 lost them all practices, add color lost them all landing
5.Pastor color and NEC +95320 smart key learning to add
6. Some bug fixes

V8.5 update:
Support Color TFT Dash

V7.5 Update:
1. Support Visteon dashboard mileage correction(Golf 5 car before 2008 need update hardware)
2. Support all AUDI A3/TT before 2010 mileage correction
3.  Fix the bug of some A6L/Q7 after 2009 can not do mileage.

V7.1 Update:
1. You have to update your hardware before run the immoplus 7.1 (Give us your VVDI ID, we make update file for you to update your hardware)
2. New update support 2011 year AUDI A6L/Q7 EZS
3. Some car model of A3/TT/R8 can directly make key
4. Support A4, RB8 key learning function
5. Automatically add VW fourth-generation anti-theif dashboard diagnose function

VAG Vehicle Diagnostic Interface VVDI display:
