Hyster Lift Truck
- CD/DVD: 1 CD
- Language: English
- Type: PARTS CATALOGUE
- Version: JANUARY 2006

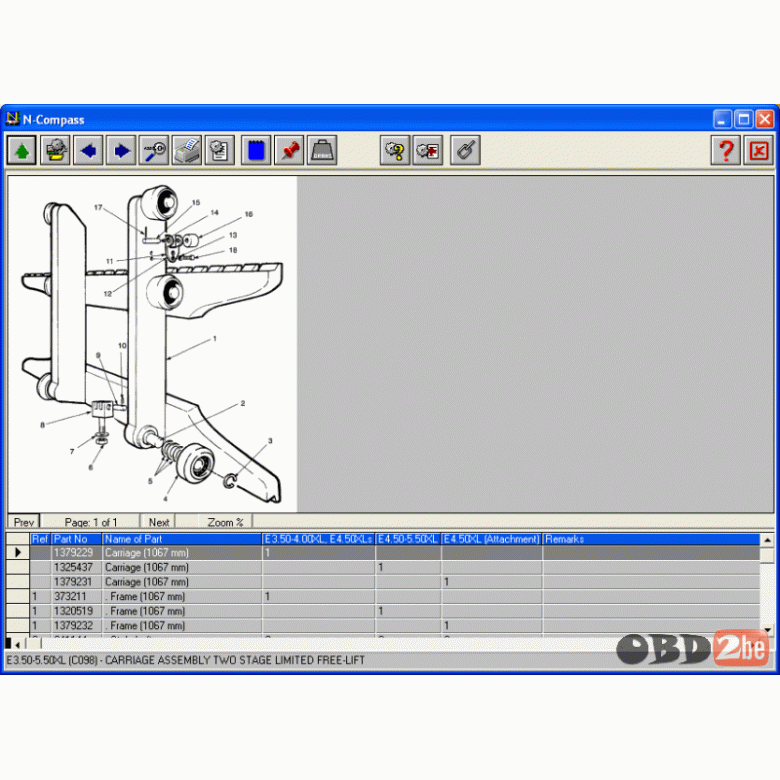

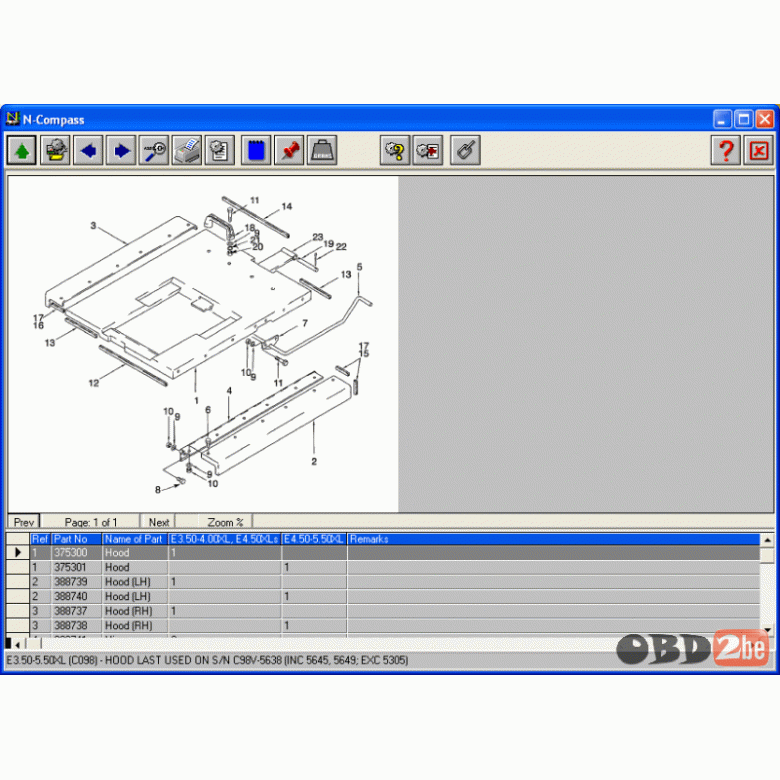

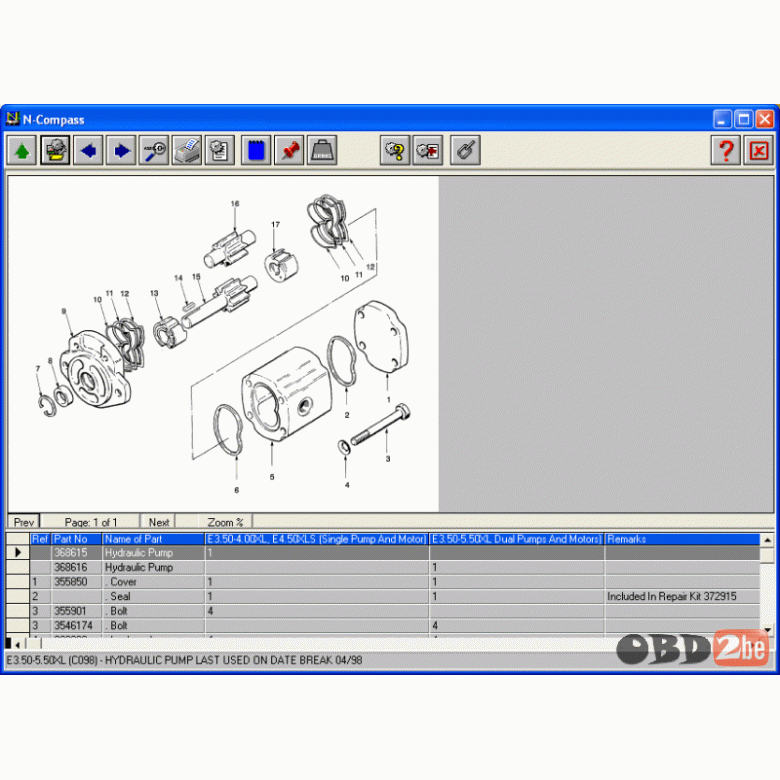

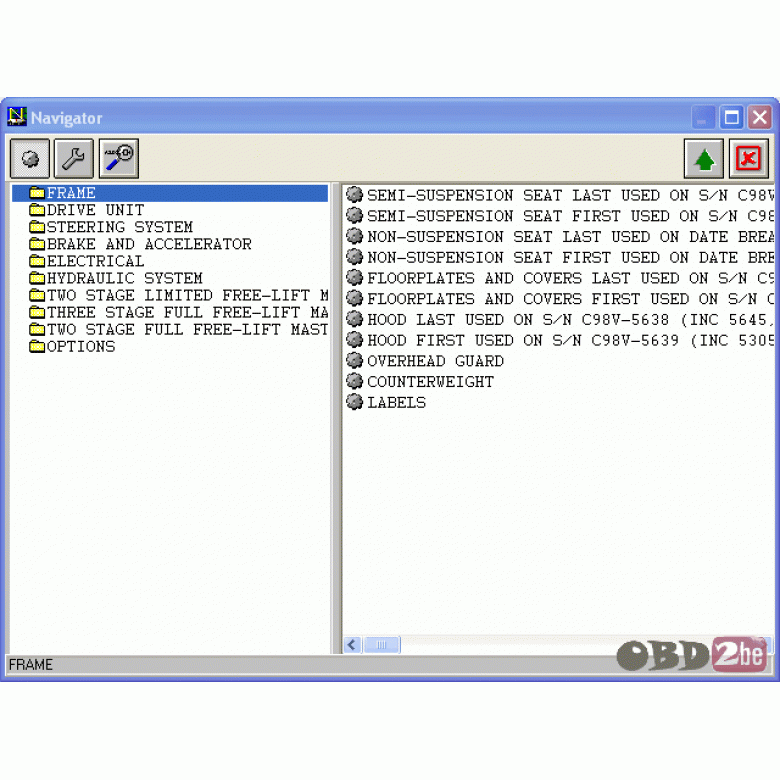

Parts catalog for Hyster fork lift trucks.

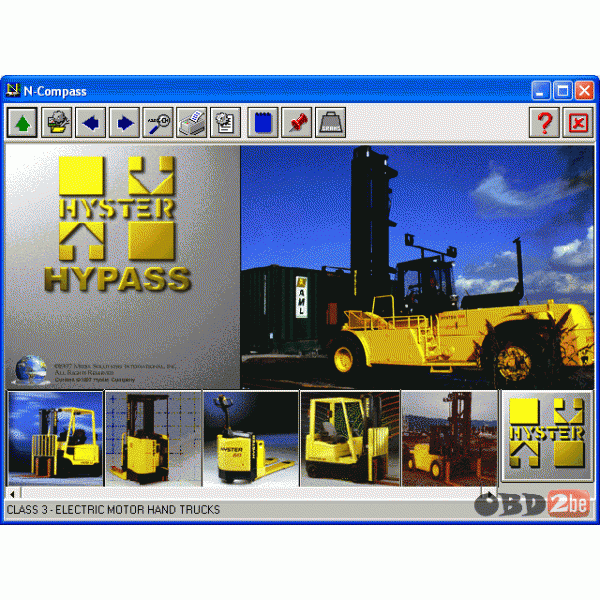

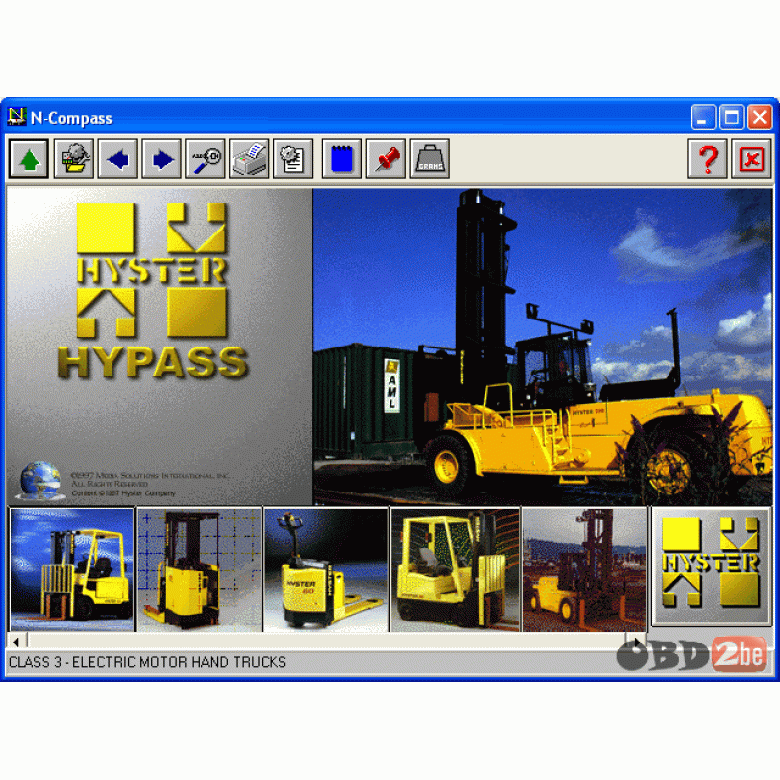

Hyster HYPASS covered the following Hyster models:

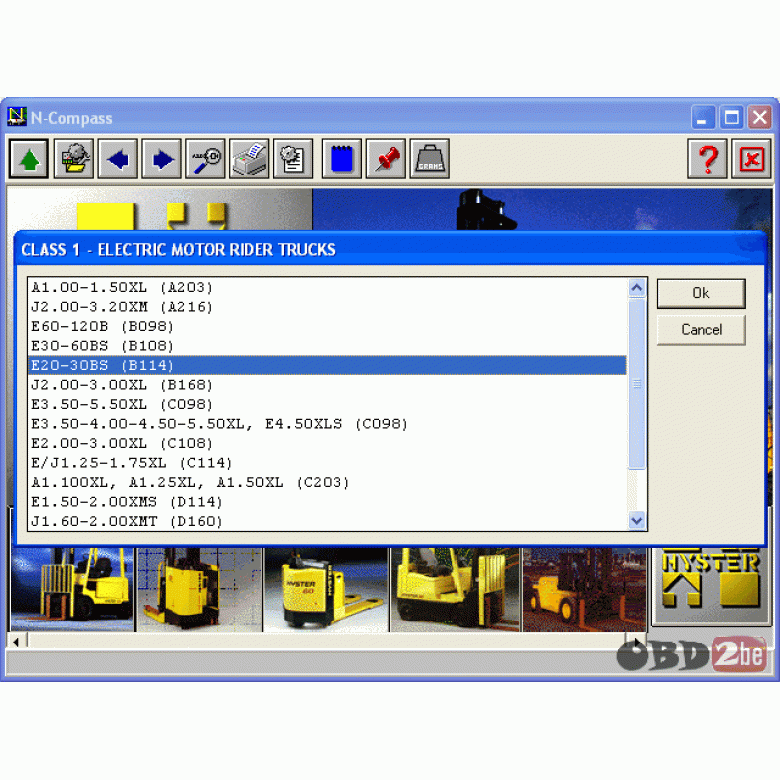

CLASS 1 - ELECTRIC MOTOR RIDER TRUCKS
A1.00-1.50XL (A203)
J2.00-3.20XM (A216)
E60-120B (B098)
E30-60BS (B108)
E20-30BS (B114)
J2.00-3.00XL (B168)
E3.50-5.50XL (C098)
E3.50-4.00-4.50-5.50XL, E4.50XLS (C098)
E2.00-3.00XL (C108)
E/J1.25-1.75XL (C114)
A1.100XL, A1.25XL, A1.50XL (C203)
E1.50-2.00XMS (D114)
J1.60-2.00XMT (D160)
J1.60-2.00XMT (E160)
E2.00-3.20XM (F108)
J1.60-1.80-2.00XMT (G160)
CLASS 4 - INTERNAL COMBUSTION ENGINE TRUCKS - CUSHION TIRES ONLY
S2.00-3.00XL (A187)
S1.25-1.75XL (B010)
S6.00-7.00XL (B024)
S2.00-3.00XL (B187)
S30-50C (C002)
S3.00-5.50E (C004)
S1.50-2.00XMS (C010)
S2.00-3.00XL (C187)
S30-60ES (D002)
S3.50-5.50XL (D004)
S2.00-3.20XM (D187)
CLASS 5 - INTERNAL COMBUSTION ENGINE TRUCKS - PNEUMATIC TIRES ONLY
H2.00-3.00XL (A177)
H14.00-18.00XM-12/-12EC (A214)
R/S45-46CH/IH (A222)
H2.00-3.00XL (B177)
H1.25-1.75XL (C001)
H60-90C (C005)
H7.00-12.50H/P7.00-9.00B (C007)
H17.00-32.00C (C008)
H13.00-16.00XL (C019)
H36.00-48.00C (C117)
H2.00-3.00XL (C177)
H1.50-1.75XM, H2.00XMS (D001)
H30-60H (D003)
H60-110E (D005)
H8.00-12.00XL (D007)
H13.00-16.00XL (D019)
H36.00-40.00-44.00E, H48.00EH (D117)
H2.00-3.20XM (D177)
H30-60H (E003)
H8.00-12.00XL (E007)
H20.00-32.00F (E008)
H13.00-16.00XM (E019)
H2.00-3.00JS (F003)
H3.50-5.00XL (F005)
H6.00-7.00XL (F006)
H8.00-12.00XM (F007)
H3.50-5.00XL (G005)
H2.00-2.50-3.00-3.20XM (H177)
H3.50-5.50XM K005
Important note: CLASS 2 - Electric Motor Narrow Aisle Trucks and CLASS 3 - Electric Motor Hand Truck are NOT INCLUDED in this program
