Allison Transmission - 1000 2000 2400 Electronic Controls

Allison Transmission - 1000 2000 2400 Electronic Controls

This manual provides troubleshooting information for the 1000 and 2000 Product Families Transmissions.

This manual includes:
? Description of the electronic control system.

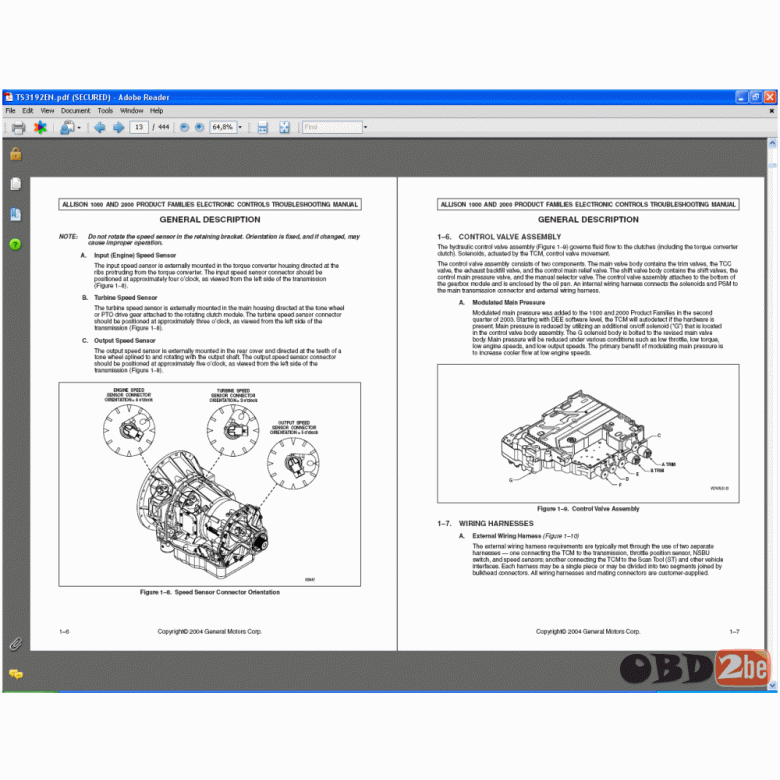

? Description of the electronic control system components.
? Description of diagnostic codes, system responses to faults, and troubleshooting.

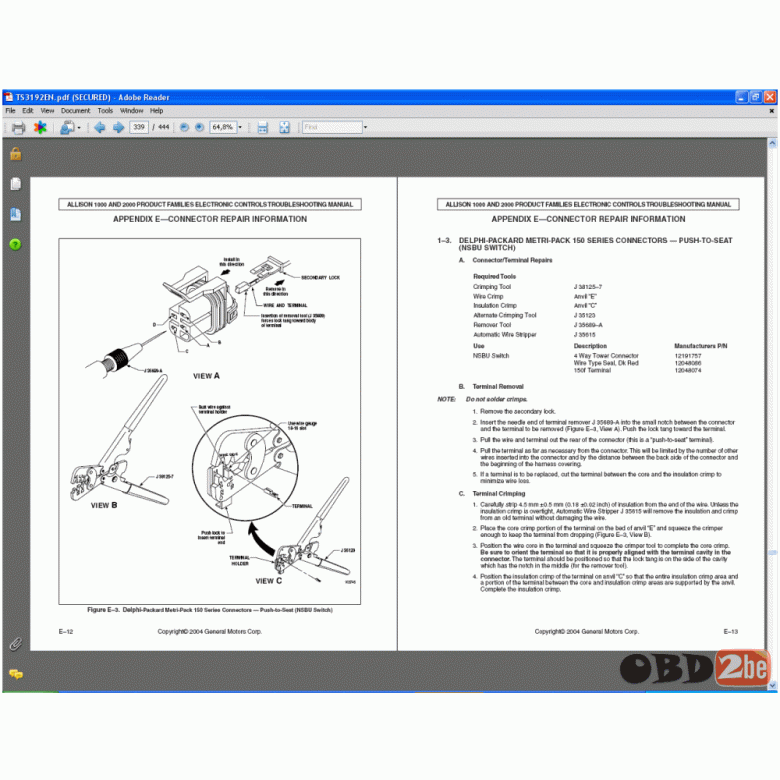

? Wire, terminal, and connector repair information.

Specific instructions for using many of the available or required service tools and equipment are not included in this manual. The service tool manufacturer will furnish instructions for using the tools or equipment.

Additional information may be published from time to time in Service Information Letters (SIL) and will be included in future revisions of this and other manuals. Please use these SILs to obtain up-to-date information concerning Allison Transmission products.

This publication is revised periodically to include improvements, new models, special tools, and procedures. A revision is indicated by a new date on the title page and in the lower left corner of the rear cover. Check with your Allison Transmission service outlet for the currently applicable publication. Additional copies of this publication may be purchased from authorized Allison Transmission service outlets. Look in your telephone directory under the heading of Transmissions?Truck. Tractor, etc.

Take time to review the Table of Contents and the manual. Reviewing the Table of Contents will aid you in quickly locating information.

Allison Transmission - 1000 2000 2400 Electronic Controls Software Download

Allison Transmission - 1000 2000 2400 Electronic Controls User Manual
